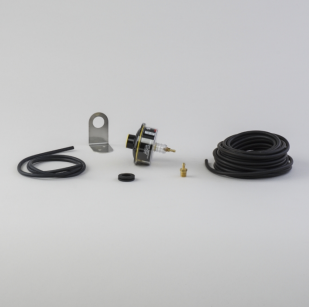

Donaldson Filtration X220074 INDICATOR, FILTER MINDER

Why Choose Donaldson Filter Minder™
Indicators?
Filter Minder™ air intake indicators, gauges, switches and
sensors maximize equipment efficiency, uptime and
performance.
• Allow maintenance managers to plan filter changes and be
aware of acute changes in restriction, helping equipment
operate more effectively and efficiently.
• Filter Minder products are the most trusted line of service
indicators, sensors, and switches available.
• Made with durable, high-quality materials  provide
optimal performance and value.
Attributes
Overall Length 299.21 inch (7600 mm)
Thread Size 1/8-27 NPT
Length 2.86 inch (72.6 mm)
Outlet Diameter 0.12 inch (3 mm)
Body Diameter Maximum 2.96 inch (75.2 mm)
Bolt Hole Diameter 0.25 inch (6.35 mm)
Outlet ID 0.12 inch (3 mm
Restriction 4.00 inch H2O (101.6 mm H2O)
Price Type H
Primary Application TRAP BREATHERS
Packaged Dimensions
Packaged Length 5.7 IN
Packaged Width 5.7 IN
Packaged Height 3.3IN
Packaged Weight 0.84 LB
Packaged Volume 0.0621 FT3
Other Information
Country of Origin United States
NMFC Code 121570
HTS Code 8479899599
UPC Code 742330225882
