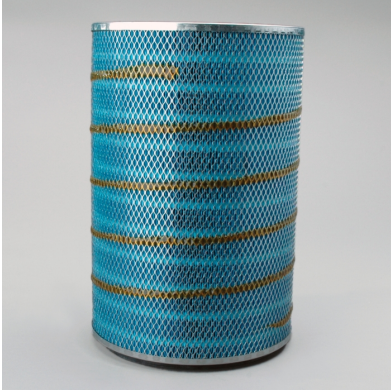

Donaldson Filtration DBA5002 Air Filter, Primary

DBA5002
AIR FILTER, PRIMARY DONALDSON
BLUE
Why Choose Donaldson Blue® Filters?
Donaldson Blue filters with Ultra-Web® media provide
superior protection over traditional cellulose filters.
• With up to 99.99% efficiency, delivers better protection for
high-dust applications.
• Sheds dust during equipment vibration for longer filter life
and fewer changes.
• Performs in extreme temperature and humidity.
Attributes
Outer Diameter 12.09 inch (307.2 mm)
Inner Diameter 7.72 inch (196 mm)
Length 18.00 inch (457.2 mm)
Efficiency Up to 99.99%
Efficiency Test Std ISO 5011
Type Primary
Style Round
Brand Donaldson BLUE®
Media Brand Ultra-Web®
Media Type Ultra-Web Nanofiber
Flow Direction Standard
Price Type F
Packaged Dimensions
Packaged Length 14.3 IN
Packaged Width 14.3 IN
Packaged Height 19.4IN
Packaged Weight 9.63 LB
Packaged Volume 2.2958 FT3
Pieces Per Pallet 32
Other Information
Country of Origin United States
NMFC Code 069100-04
HTS Code 8421310000
UPC Code 742330027158
