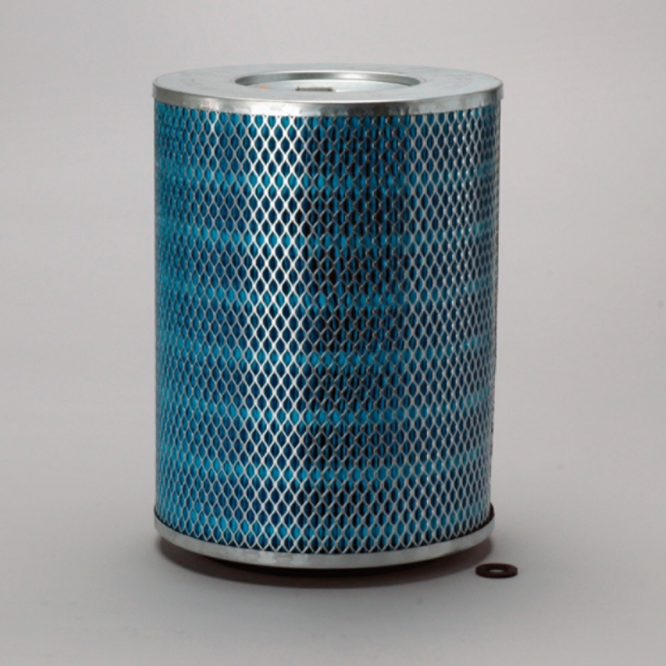

Donaldson Filtration DBA5202.AIR FILTER, PRIMARY DONALDSON BLUE

Why Choose Donaldson Blue® Filters?

Donaldson Blue filters with Ultra-Web® media provide

superior protection over traditional cellulose filters.

• With up to 99.99% efficiency, delivers better protection for

high-dust applications.

• Sheds dust during equipment vibration for longer filter life

and fewer changes.

• Performs in extreme temperature and humidity.

Attributes

Outer Diameter 9.21 inch (234 mm)

Inner Diameter 4.84 inch (123 mm)

Length 12.01 inch (305 mm)

Efficiency Up to 99.99%

Efficiency Test Std ISO 5011

Type Primary

Style Round

Media Brand Ultra-Web®

Media Type Ultra-Web NanofiberFlow Direction Standard

Price Type F

Packaged Dimensions

Packaged Length 9.80 inch (24.892 cm)

Packaged Width 9.80 inch (24.892 cm)

Packaged Height 14.40 inch (36.576 cm)

Packaged Weight 4.78 lb (2.170 kg)

Packaged Volume 0.80 ft3 (0.022 m3)

Pieces Per Pallet 48

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330979662
