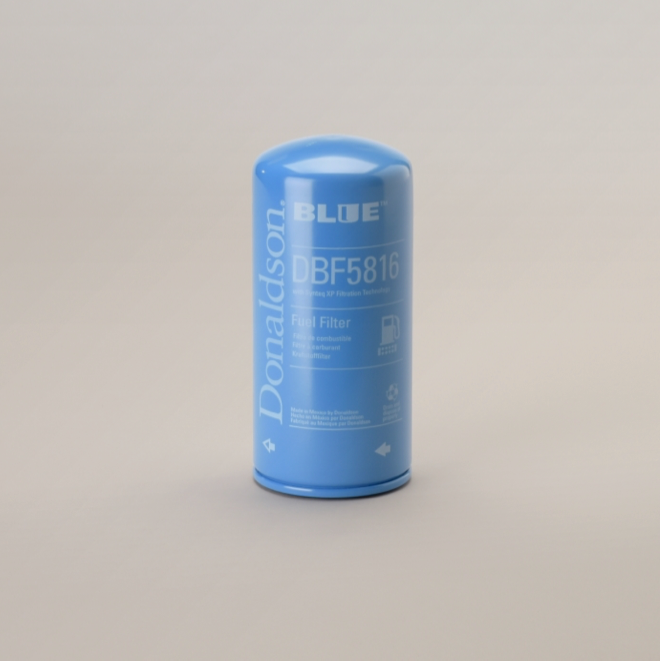

DBF5816
FUEL FILTER, SPIN-ON SECONDARY
DONALDSON BLUE
Why Choose Donaldson Blue® Filters?
Donaldson Blue® fuel filters with Synteq XP™ media deliver
fuel that's up to 4x cleaner than competitors' best filters.
• Best capture and retention of injector damaging
contaminants.
• Best performance in heavy-duty environments (inferior
filters can “shed” contaminant during engine vibration).
• Helps minimize expensive repairs and unplanned
downtime.
Attributes
Outer Diameter 3.18 inch (80.8 mm)
Thread Size 7/8-14 UN
Length 6.93 inch (176 mm)
Gasket OD 2.91 inch (74 mm)
Gasket ID 2.52 inch (64 mm)
Efficiency 99.9% 4 micron
Type Secondary
Brand Donaldson BLUE®
Media Type Synteq XP
Primary Application CATERPILLAR ENGINES
Packaged Dimensions
Packaged Length 3.1 IN
Packaged Width 3.1 IN
Packaged Height 6.8IN
Packaged Weight 0.95 LB
Packaged Volume 0.0378 FT3
Other Information
Country of Origin Mexico
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330989197
