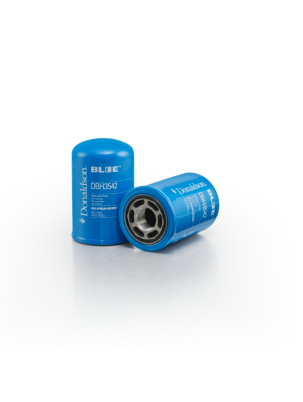

Donaldson Filtration DBH3542 Hydraulic Filter, Spin-On Donaldson Blue

Why Choose Donaldson Alpha-Web™ Hydraulic
Filters?
Donaldson Alpha-Web™ hydraulic filters are designed to
remove more contaminant in real world cyclic flow
conditions:
• Fluid cleanliness 2 ISO codes better than traditional
synthetic media*
• Up to 4x cleaner hydraulic fluid
• Extended component life by up to 60%*
• Provides the most protection for your hydraulic system
*Results from lab testing, field testing ongoing. According to
the Equipment Life Extension Table by Noria Corporation,
the industry-accepted authority on fluid cleanliness, an
improvement in fluid cleanliness by two ISO codes can
extend component life by 60 percent.
Attributes
Efficiency Alpha 1000 10 micron
Outer Diameter 3.82 inch (97 mm)
Thread Size 1 3/8-12 UN
Length 5.97 inch (151.7 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.48 inch (63 mm)
Efficiency Test Std 23369
Collapse Burst 500 psi (34.5 bar)
Flow Direction Standard
Style Spin-On
Series HMK04/24
Media Brand Alpha-web™
Media Type Alpha-web™
Price Type FH
Primary Application CASE/CASE IH A165029
Packaged Dimensions
Packaged Length 0.37 FT
Packaged Width 0.37 FT
Packaged Height 0.52FT
Packaged Weight 2.07 LB
Packaged Volume 0.0695 FT3
Pieces Per Pallet 600
Other Information
Country of Origin Mexico
NMFC Code 069095-02
HTS Code 8421290040
UPC Code 742330241202
