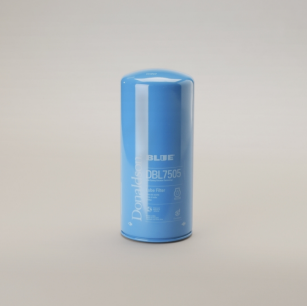

Donaldson Filtration DBL7505 Lube Filter, Spin-On Full Flow Donaldson Blue

Why Choose Donaldson Blue® Filters?
Donaldson Blue® lube filters are designed specifically for
extended maintenance programs.
• Proven Synteq™ – media delivers greater efficiency and
higher contaminant holding capacity.
• Removes more than 90% of contaminants 10 microns or
larger (cellulose filters typically remove 50% or less).
• Twice the contaminant holding capacity of standard
cellulose filters – for longer filter life.
• Direct replacements to standard filters – no system
modifications.
Attributes
Outer Diameter 5.35 inch (136 mm)
Thread Size 1 1/2-16 UN
Length 12.13 inch (308 mm)
Gasket OD 4.33 inch (110 mm)
Gasket ID 3.94 inch (100 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 4548-12
Media Type Synteq
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
Price Type F
Packaged Dimensions
Packaged Length 0.14 M
Packaged Width 0.14 M
Packaged Height 0.31M
Packaged Weight 4.525 LB
Packaged Volume 0.00607 M3
Pieces Per Pallet 216
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330994467
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Formaldehyde, which are known
to the State of California to cause cancer. For
more information go to
www.P65Warnings.ca.gov.
