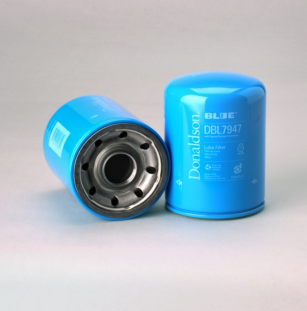

Donaldson Filtration DBL7947 Lube Filter, Spin-On Full Flow Donaldson Blue

Why Choose Donaldson Blue® Filters?
Donaldson Blue® lube filters are designed specifically for
extended maintenance programs.
• Proven Synteq™ – media delivers greater efficiency and
higher contaminant holding capacity.
• Removes more than 90% of contaminants 10 microns or
larger (cellulose filters typically remove 50% or less).
• Twice the contaminant holding capacity of standard
cellulose filters – for longer filter life.
• Direct replacements to standard filters – no system
modifications.
Attributes
Outer Diameter 4.65 inch (118 mm)
Thread Size 1 1/2-12 UN
Length 6.30 inch (160 mm)
Gasket OD 4.33 inch (110 mm)
Gasket ID 3.86 inch (98 mm)
Efficiency 99% 15 micron
Efficiency Test Std SAE J1858
Media Type Synteq
Collapse Burst 149 psi (10.3 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
Price Type F
Packaged Dimensions
Packaged Length 4.6 IN
Packaged Width 4.5 IN
Packaged Height 6.1IN
Packaged Weight 2.32 LB
Packaged Volume 0.0731 FT3
Pieces Per Pallet 432
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421230000
UPC Code 742330018859
