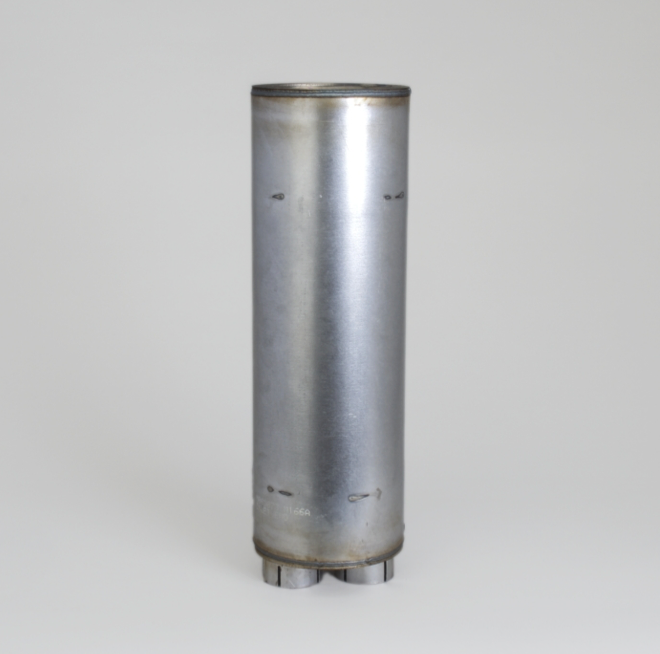

Donaldson Filtration M065073 MUFFLER, ROUND STYLE 5

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M065073

MUFFLER, ROUND STYLE 5

Inlet-Outlet

2.51 inch (63.88 mm)

2.51 inch (63.88 mm)

6.60 inch (167.6 mm)

19.50 inch (495.3 mm)

22.00 inch (558.8 mm)

413 cfm (11.7 m³/min)

586 cfm (16.6 m³/min)

717 cfm (20.3 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.99 inch Hg (76 mm Hg)

Attenuation LR 15 dBA

Attenuation HR 20 dBA

Inlet Clock Position 6:00

Outlet Clock Position 12:00

Style Style 5

Price Type E

Packaged Dimensions

Packaged Length 24.75 inch (62.865 cm)

Packaged Width 7.90 inch (20.066 cm)

Packaged Height 7.50 inch (19.050 cm)

Packaged Weight 11.55 lb (5.244 kg)

Packaged Volume 0.85 ft3 (0.024 m3)

Pieces Per Pallet 34

Other Information

Country of Origin United States

NMFC Code 125850-04

HTS Code 8708925000

UPC Code 742330004692
