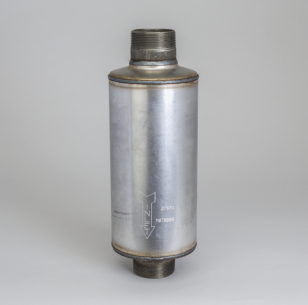

Donaldson Filtration M070008 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.99 inch (76 mm)
Outlet Diameter 2.99 inch (76 mm)
Body Diameter Maximum 6.97 inch (177.1 mm)
Body Length 13.75 inch (349.25 mm)
Overall Length 19.75 inch (501.65 mm)
Rated Flow LR 745 cfm (21.1 m³/min)
Rated Flow MR 1056 cfm (29.9 m³/min)
Rated Flow HR 1293 cfm (36.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 23.20 inch (58.928 cm)
Packaged Width 7.90 inch (20.066 cm)
Packaged Height 7.80 inch (19.812 cm)
Packaged Weight 11.95 lb (5.425 kg)
Packaged Volume 0.83 ft3 (0.023 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330004715
