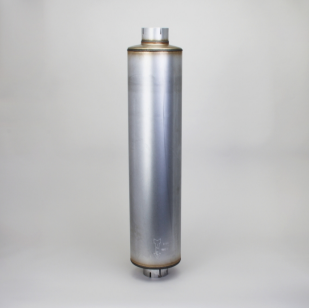

Donaldson Filtration M085171 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.12 mm)
Outlet Diameter 4.02 inch (102.12 mm)
Body Diameter Maximum 8.46 inch (214.88 mm)
Body Length 34.12 inch (866.65 mm)
Overall Length 40.00 inch (1016 mm)
Rated Flow LR 1798 cfm (50.9 m³/min)
Rated Flow MR 2546 cfm (72.1 m³/min)
Rated Flow HR 3118 cfm (88.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 8 dBA
Attenuation HR 12 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 43.00 inch (109.220 cm)
Packaged Width 9.00 inch (22.860 cm)
Packaged Height 8.75 inch (22.225 cm)
Packaged Weight 20.09 lb (9.121 kg)
Packaged Volume 1.96 ft3 (0.055 m3)
Pieces Per Pallet 30
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330004944
