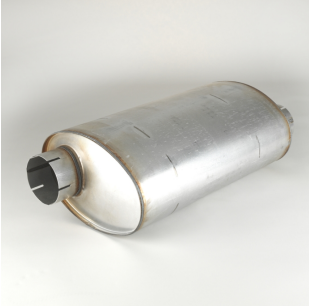

Donaldson Filtration M120225 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 25.50 inch (647.7 mm)
Overall Length 32.50 inch (825.5 mm)
Rated Flow LR 1667 cfm (47.2 m³/min)
Rated Flow MR 2355 cfm (66.7 m³/min)
Rated Flow HR 2885 cfm (81.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 35.00 inch (88.900 cm)
Packaged Width 16.00 inch (40.640 cm)
Packaged Height 11.50 inch (29.210 cm)
Packaged Weight 32.90 lb (14.937 kg)
Packaged Volume 3.73 ft3 (0.104 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330005927
