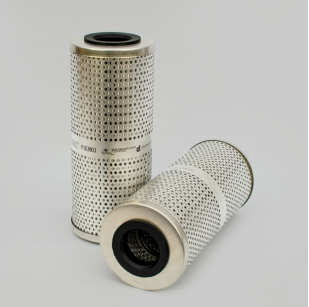

Donaldson Filtration P163903 HYDRAULIC FILTER, CARTRIDGE

  Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.86 inch (98 mm)
Inner Diameter 1.61 inch (41 mm)
Length 9.02 inch (229.1 mm)
Efficiency Beta 1000 10 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
Price Type FH
Primary Application SCHROEDER KS7
Packaged Dimensions
Packaged Length 4.30 inch (10.922 cm)
Packaged Width 4.20 inch (10.668 cm)
Packaged Height 9.90 inch (25.146 cm)
Packaged Weight 1.41 lb (0.638 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 376
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330015759
