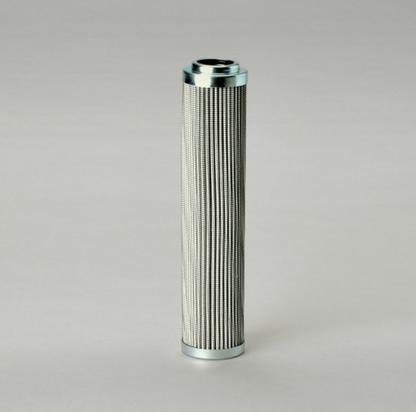

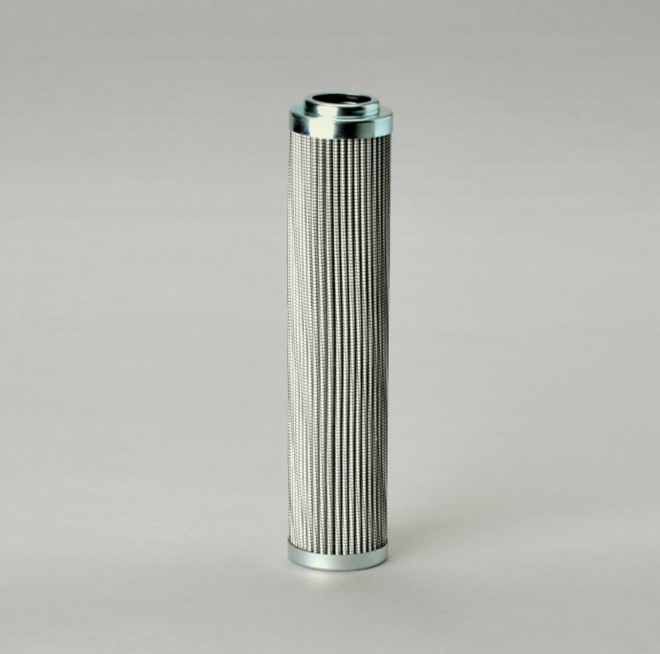

Donaldson Filtration P165138 HYDRAULIC FILTER, CARTRIDGE.

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 1.81 inch (46 mm)

Inner Diameter 1.02 inch (25.8 mm)

Length 8.19 inch (208 mm)

Efficiency Beta 1000 23 micron

Collapse Burst 149 psi (10.3 bar)

Style Cartridge

Series HPK02, FPK02

Media Type Synthetic

Price Type FHPrimary Application PALL HC9020FUT8H

Packaged Dimensions

Packaged Length 2.36 inch (5.994 cm)

Packaged Width 2.36 inch (5.994 cm)

Packaged Height 9.84 inch (24.994 cm)

Packaged Weight 0.67 lb (0.305 kg)

Packaged Volume 0.03 ft3 (0.001 m3)

Pieces Per Pallet 398

Other Information

Country of Origin Italy

NMFC Code 069100-13

HTS Code 8421290040

UPC Code 742330016848
