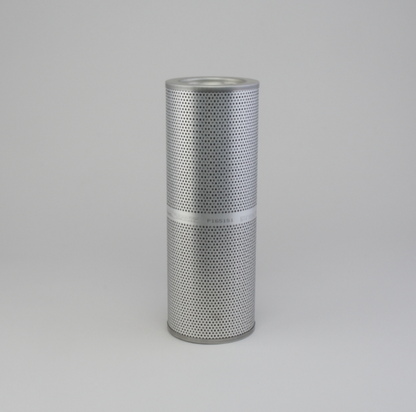

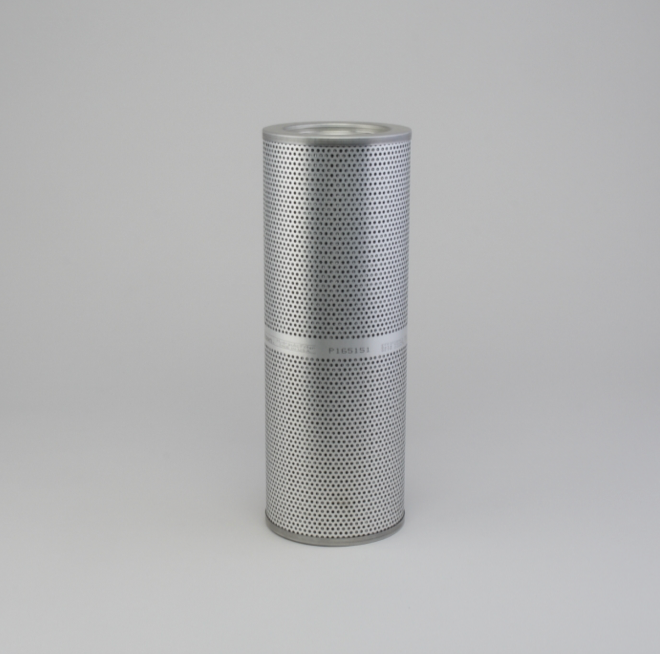

Donaldson Filtration P165151.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 6.02 inch (152.91 mm)

Inner Diameter 3.28 inch (83.31 mm)

Length 16.77 inch (425.96 mm)

Efficiency Beta 1000 23 micron

Collapse Burst 149 psi (10.3 bar)

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 6.30 inch (16.002 cm)

Packaged Width 6.30 inch (16.002 cm)

Packaged Height 17.60 inch (44.704 cm)

Packaged Weight 6.15 lb (2.790 kg)

Packaged Volume 0.40 ft3 (0.011 m3)

Pieces Per Pallet 36

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290065

UPC Code 742330016909
