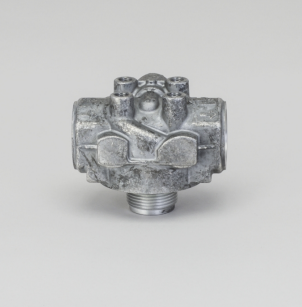

Donaldson Filtration P166862 HEAD ASSEMBLY, HMK04 DURAMAX

Attributes
Length 4.00 inch (101.6 mm)
Height 3.38 inch (85.85 mm)
Inlet Size SAE-16
Outlet Size SAE-16
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 4.30 inch (10.922 cm)
Packaged Width 4.20 inch (10.668 cm)
Packaged Height 5.40 inch (13.716 cm)
Packaged Weight 1.52 lb (0.690 kg)
Packaged Volume 0.06 ft3 (0.002 m3)
Pieces Per Pallet 800
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330018026
