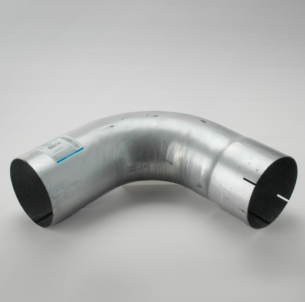

Donaldson Filtration P206342 ELBOW, 90 DEGREE 3.5 IN (89 MM) OD-ID

Attributes
Outer Diameter 3.49 inch (88.52 mm)
Inner Diameter 3.49 inch (88.52 mm)
Leg Length 1 9.00 inch (228.6 mm)
Leg Length 2 9.00 inch (228.6 mm)
Radius 5.00 inch (127 mm)
Connection OD-ID
Angle 90 Degrees
Price Type E
Packaged Dimensions
Packaged Length 13.78 inch (35.001 cm)
Packaged Width 13.78 inch (35.001 cm)
Packaged Height 3.94 inch (10.008 cm)
Packaged Weight 2.92 lb (1.323 kg)
Packaged Volume 0.43 ft3 (0.012 m3)
Pieces Per Pallet 55
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 7307995045
UPC Code 742330028513
