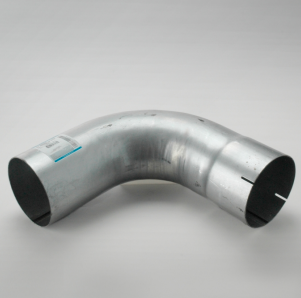

Donaldson Filtration P206343 ELBOW, 90 DEGREE 3.5 IN (89 MM) OD-ID

Attributes
Outer Diameter 3.49 inch (88.52 mm)
Inner Diameter 3.49 inch (88.52 mm)
Leg Length 1 16.00 inch (406.4 mm)
Leg Length 2 16.00 inch (406.4 mm)
Radius 5.00 inch (127 mm)
Connection OD-ID
Angle 90 Degrees
Price Type E
Packaged Dimensions
Packaged Length 25.00 inch (63.499 cm)
Packaged Width 3.25 inch (8.254 cm)
Packaged Height 17.75 inch (45.086 cm)
Packaged Weight 5.40 lb (2.452 kg)
Packaged Volume 0.83 ft3 (0.023 m3)
Pieces Per Pallet 15
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 7307995045
UPC Code 742330028520
