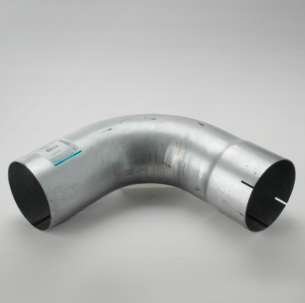

Donaldson Filtration P206344 ELBOW, 90 DEGREE 4 IN (102 MM) OD-ID

Attributes
Outer Diameter 4.01 inch (101.98 mm)
Inner Diameter 4.01 inch (101.98 mm)
Leg Length 1 10.00 inch (254 mm)
Leg Length 2 10.00 inch (254 mm)
Radius 7.00 inch (177.8 mm)
Connection OD-ID
Angle 90 Degrees
Price Type E
Packaged Dimensions
Packaged Length 16.85 inch (42.799 cm)
Packaged Width 7.45 inch (18.923 cm)
Packaged Height 4.30 inch (10.922 cm)
Packaged Weight 3.52 lb (1.598 kg)
Packaged Volume 0.31 ft3 (0.009 m3)
Pieces Per Pallet 100
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 7307995060
UPC Code 742330028537
