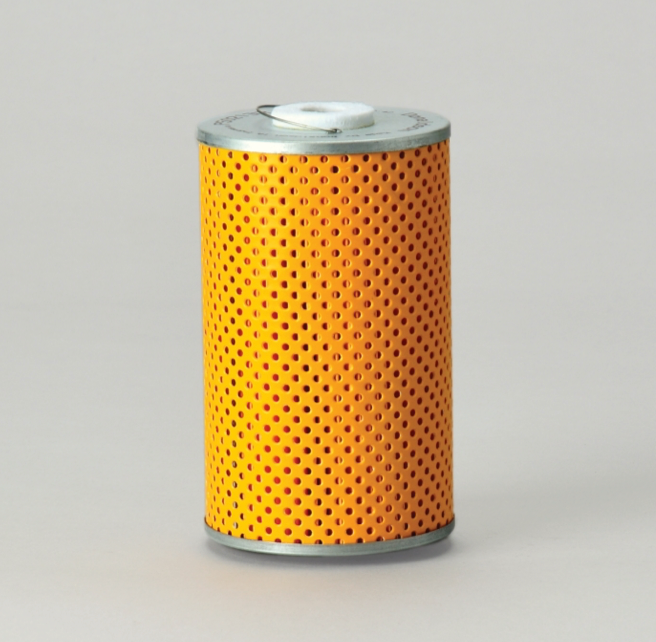

Donaldson Filtration P502132.FUEL FILTER, CARTRIDGE

Why Choose Donaldson Fuel Filters?

Donaldson fuel filters are designed to help prevent

premature injector and pump wear by delivering cleaner

fuel to your engines.

• Reliable performance – pressure relief valve allows fuel to

rise slowly.

• Compatible with existing electronic filter life indicators.

• Cellulose media – effectively meets application efficiency

and capacity requirements.

Attributes

Outer Diameter 3.86 inch (98 mm)

Inner Diameter 0.87 inch (22 mm)

Length 6.30 inch (160 mm)

Gasket OD 1.50 inch (38 mm)

Efficiency 99% 30 micron

Efficiency Test Std JIS D 1611

Collapse Burst 100 psi (6.9 bar)

Style Cartridge

Media Type CellulosePrice Type F

Primary Application MANN & HUMMEL EK405

Packaged Dimensions

Packaged Length 4.00 inch (10.160 cm)

Packaged Width 4.10 inch (10.414 cm)

Packaged Height 7.20 inch (18.288 cm)

Packaged Weight 0.72 lb (0.325 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 240

Other Information

Country of Origin Indonesia

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330110379
