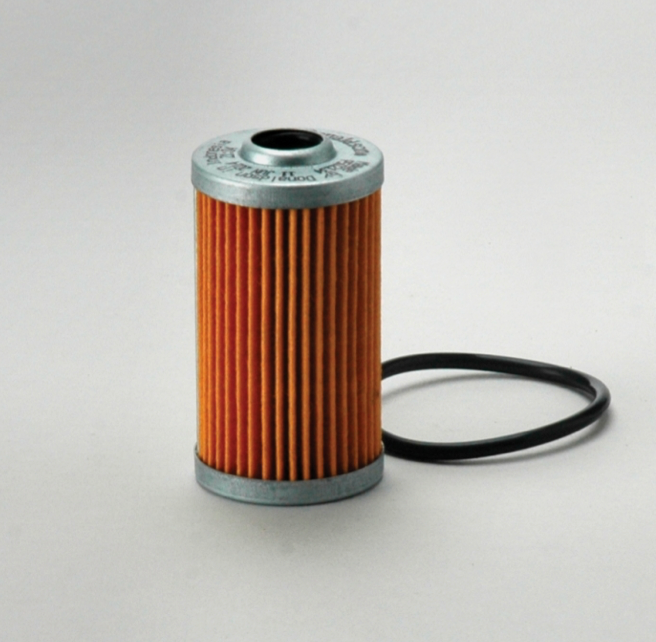

Donaldson Filtration P502134.FUEL FILTER, CARTRIDGE

Why Choose Donaldson Fuel Filters?

Donaldson fuel filters are designed to help prevent

premature injector and pump wear by delivering cleaner

fuel to your engines.

• Reliable performance – pressure relief valve allows fuel to

rise slowly.

• Compatible with existing electronic filter life indicators.

• Cellulose media – effectively meets application efficiency

and capacity requirements.

Attributes

Outer Diameter 1.38 inch (35 mm)

Inner Diameter 0.41 inch (10.5 mm)

Length 2.60 inch (66 mm)

Efficiency 50% 16 micron

Efficiency Test Std JIS D 1611

Collapse Burst 100 psi (6.9 bar)

Style Cartridge

Media Type Cellulose

Price Type FPrimary Application YANMAR 10450055710

Packaged Dimensions

Packaged Length 1.60 inch (4.064 cm)

Packaged Width 1.60 inch (4.064 cm)

Packaged Height 3.60 inch (9.144 cm)

Packaged Weight 0.06 lb (0.027 kg)

Packaged Volume 0.01 ft3 (0.000 m3)

Pieces Per Pallet 3612

Other Information

Country of Origin China

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330110393
