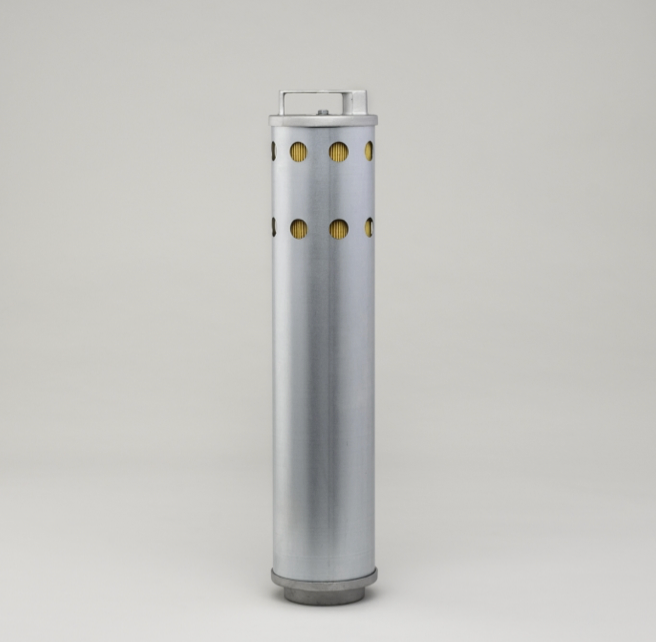

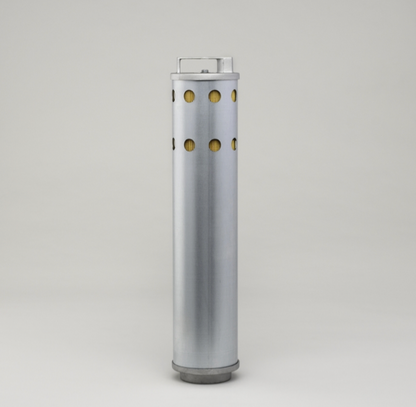

Donaldson Filtration P502269.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 4.39 inch (111.6 mm)

Inner Diameter 2.24 inch (57 mm)

Length 19.06 inch (484 mm)

Efficiency Beta 2 14 micron

Efficiency Beta 20 30 micron

Efficiency Beta 75 37 micron

Efficiency Test Std JIS D 1611

Collapse Burst 100 psi (6.9 bar)

Style CartridgeMedia Type Cellulose

Price Type FH

Primary Application HITACHI 4448401

Packaged Dimensions

Packaged Length 4.80 inch (12.192 cm)

Packaged Width 4.80 inch (12.192 cm)

Packaged Height 21.24 inch (53.950 cm)

Packaged Weight 4.33 lb (1.964 kg)

Packaged Volume 0.28 ft3 (0.008 m3)

Other Information

Country of Origin Indonesia

NMFC Code 069100-05

HTS Code 8421290040

UPC Code 742330189573
