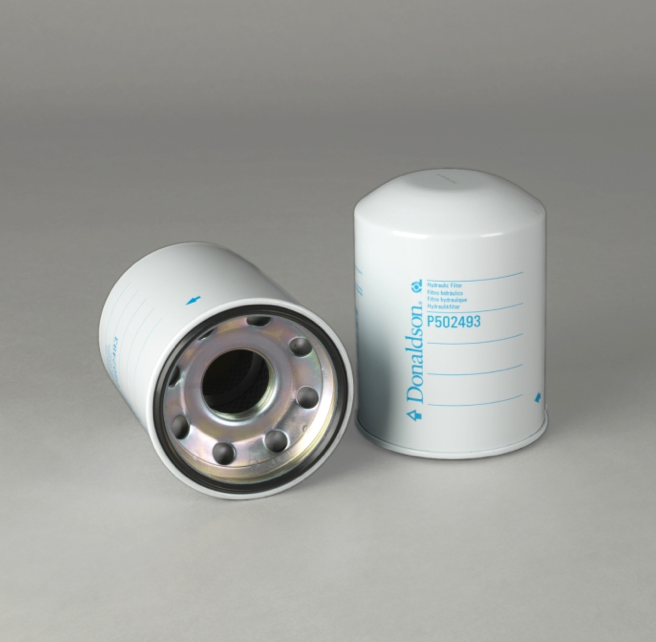

Donaldson Filtration P502493.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 5.00 inch (127 mm)

Thread Size M48 x 2

Length 6.85 inch (174 mm)

Gasket OD 4.88 inch (124 mm)

Gasket ID 4.41 inch (112 mm)

Efficiency Beta 2 7 micron

Efficiency Beta 75 16 micron

Efficiency Beta 200 19 micronEfficiency Beta 1000 23 micron

Efficiency Test Std ISO 4548-12

Collapse Burst 100 psi (6.9 bar)

Flow Direction Standard

Style Spin-On

Media Type Cellulose

Price Type F*

Packaged Dimensions

Packaged Length 5.50 inch (13.970 cm)

Packaged Width 5.50 inch (13.970 cm)

Packaged Height 7.70 inch (19.558 cm)

Packaged Weight 2.93 lb (1.328 kg)

Packaged Volume 0.13 ft3 (0.004 m3)

Pieces Per Pallet 30

Other Information

Country of Origin Indonesia

NMFC Code 133320

HTS Code 8421290040

UPC Code 742330964149
