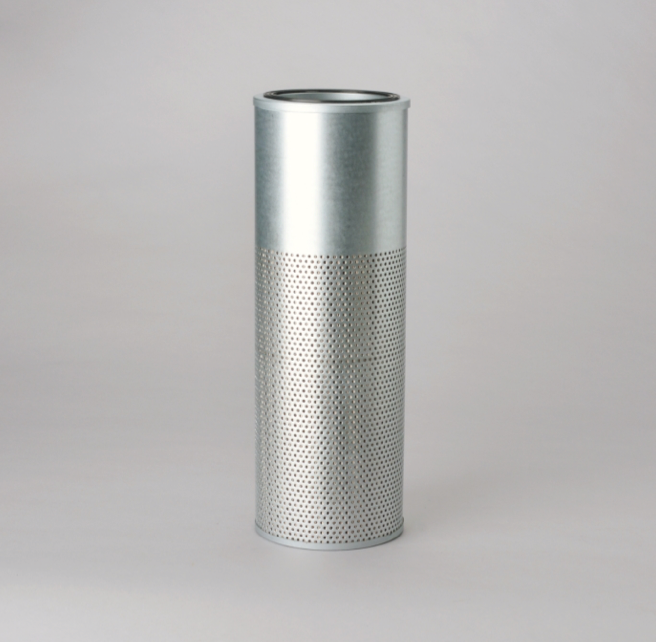

Donaldson Filtration P502494.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 5.91 inch (150 mm)

Inner Diameter 4.33 inch (110 mm)

Length 16.93 inch (430 mm)

Efficiency Beta 2 7 micron

Efficiency Beta 75 16 micron

Efficiency Test Std ISO 4548-12

Collapse Burst 100 psi (6.9 bar)

Flow Direction Standard

Style CartridgeMedia Type Cellulose

Price Type F*

Primary Application VOLVO 14539482

Packaged Dimensions

Packaged Length 6.69 inch (16.993 cm)

Packaged Width 6.69 inch (16.993 cm)

Packaged Height 17.72 inch (45.009 cm)

Packaged Weight 5.15 lb (2.336 kg)

Packaged Volume 0.46 ft3 (0.013 m3)

Pieces Per Pallet 72

Other Information

Country of Origin Indonesia

NMFC Code 133320

HTS Code 8421290040

UPC Code 742330964156
