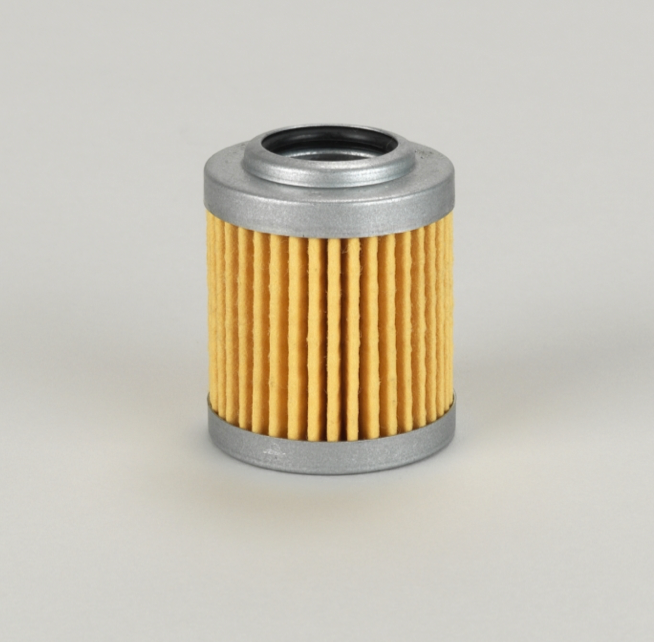

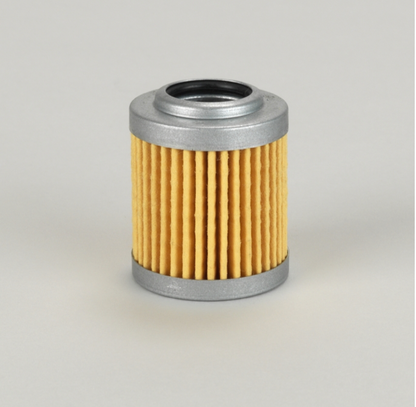

Donaldson Filtration P502508.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 1.65 inch (42 mm)

Inner Diameter 0.91 inch (23 mm)

Length 2.05 inch (52 mm)

Efficiency Beta 2 17 micron

Efficiency Beta 75 39 micron

Efficiency Test Std ISO 4548-12

Collapse Burst 100 psi (6.9 bar)

Style Cartridge

Media Type CellulosePrice Type FH

Packaged Dimensions

Packaged Length 1.97 inch (5.004 cm)

Packaged Width 1.97 inch (5.004 cm)

Packaged Height 2.36 inch (5.994 cm)

Packaged Weight 0.11 lb (0.050 kg)

Packaged Volume 0.01 ft3 (0.000 m3)

Other Information

Country of Origin Indonesia

NMFC Code 069100-13

HTS Code 8421290065

UPC Code 742330965603
