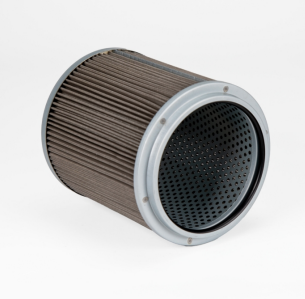

Donaldson Filtration P502656 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 150 micron
Outer Diameter 4.92 inch (125 mm)
Inner Diameter 3.85 inch (97.8 mm)
Length 5.14 inch (130.5 mm)
Overall Length 5.45 inch (138.5 mm)
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 5.07 inch (12.878 cm)
Packaged Width 5.07 inch (12.878 cm)
Packaged Height 5.46 inch (13.868 cm)
Packaged Weight 1.23 lb (0.560 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 6
Other Information
Country of Origin Indonesia
NMFC Code 069095-08
HTS Code 8421290040
UPC Code 742330239179
