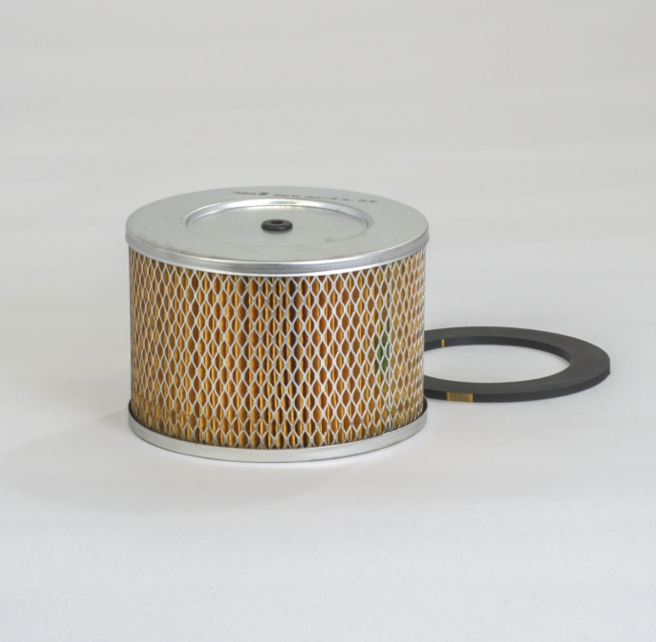

Donaldson Filtration P528235 AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 5.94 inch (150.9 mm)

Inner Diameter 3.25 inch (82.6 mm)

Length 4.00 inch (101.6 mm)

Bolt Hole Diameter 0.25 inch (6.4 mm)

Efficiency Test Std ISO 5011

Type Primary

Style Round

Price Type FPackaged Dimensions

Packaged Length 6.69 inch (16.993 cm)

Packaged Width 6.69 inch (16.993 cm)

Packaged Height 4.33 inch (10.998 cm)

Packaged Weight 1.20 lb (0.545 kg)

Packaged Volume 0.11 ft3 (0.003 m3)

Pieces Per Pallet 144

Other Information

Country of Origin United States

NMFC Code 069100-05

HTS Code 8421310000

UPC Code 742330037522
