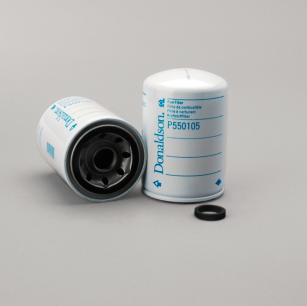

Donaldson Filtration P550105 FUEL FILTER, SPIN-ON PRIMARY

Why Choose Donaldson Blue® Filters?
Donaldson Blue® fuel filters with Synteq XP™ media deliver
fuel that's up to 4x cleaner than competitors' best filters.
• Best capture and retention of injector damaging
contaminants.
• Best performance in heavy-duty environments (inferior
filters can “shed” contaminant during engine vibration).
• Helps minimize expensive repairs and unplanned
downtime.
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 5.35 inch (136 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 25 micron
Efficiency Test Std SAE J1985
Collapse Burst 100 psi (6.9 bar)
Style Spin-On
Media Type Cellulose
Price Type F
Primary Application CUMMINS 154709
Packaged Dimensions
Packaged Length 3.70 inch (9.398 cm)
Packaged Width 3.70 inch (9.398 cm)
Packaged Height 5.35 inch (13.589 cm)
Packaged Weight 1.06 lb (0.481 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 840
Other Information
Country of Origin Colombia
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330040904
