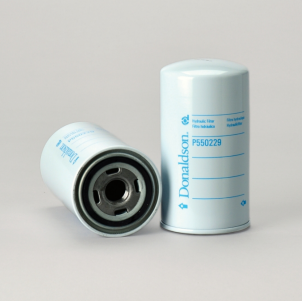

Donaldson Filtration P550229 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.82 inch (97 mm)
Thread Size 1-12 UN
Length 7.01 inch (178 mm)
Gasket OD 2.80 inch (71 mm)
Gasket ID 2.40 inch (61 mm)
Efficiency Beta 2 17 micron
Bypass Valve Yes
Bypass Valve Setting LR 30 psi (2.1 bar)
Bypass Valve Setting HR 42 psi (2.9 bar)
Style Spin-On
Media Type Cellulose
Price Type F
Packaged Dimensions
Packaged Length 4.10 inch (10.414 cm)
Packaged Width 4.10 inch (10.414 cm)
Packaged Height 7.30 inch (18.542 cm)
Packaged Weight 1.88 lb (0.854 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 432
Other Information
Country of Origin Indonesia
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330041666
