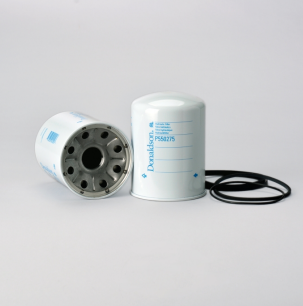

Donaldson Filtration P550275 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Mesh Rating 150 micron
Outer Diameter 5.04 inch (128 mm)
Thread Size 1 1/2-16 UN
Length 6.66 inch (169.2 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 2 150 micron
Flow Direction Standard
Style Spin-On
Series W023, SP50/60, SP80/90, SP100/120
Media Type Wire Mesh
Price Type F
Primary Application ZINGA SE100
Packaged Dimensions
Packaged Length 5.05 inch (12.827 cm)
Packaged Width 5.40 inch (13.716 cm)
Packaged Height 6.90 inch (17.526 cm)
Packaged Weight 2.53 lb (1.149 kg)
Packaged Volume 0.11 ft3 (0.003 m3)
Pieces Per Pallet 216
Other Information
Country of Origin United States
NMFC Code 069100-07
HTS Code 8421290040
UPC Code 742330042007
