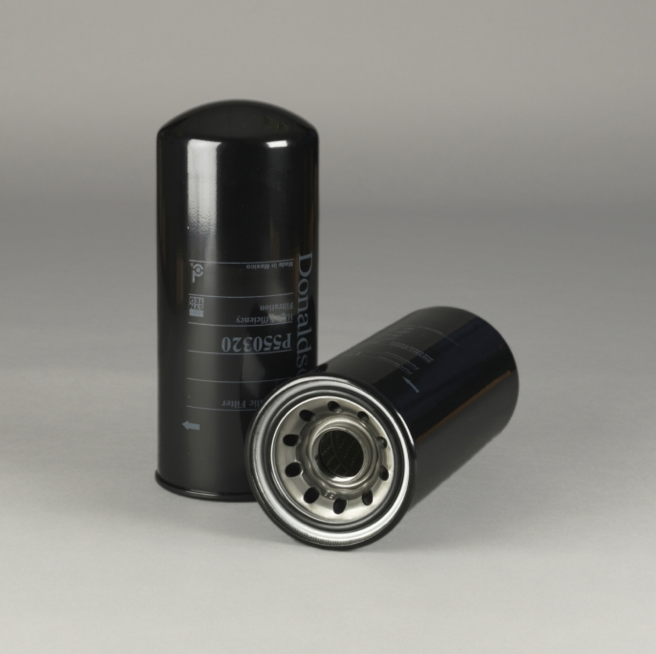

Donaldson Filtration P550320.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 5.00 inch (127 mm)

Thread Size 1 1/2-16 UN

Length 11.71 inch (297.4 mm)

Gasket OD 4.17 inch (105.9 mm)

Gasket ID 3.65 inch (92.7 mm)

Efficiency Beta 2 4 micron

Efficiency Beta 200 19 micron

Style Spin-OnMedia Type Synthetic

Price Type F

Packaged Dimensions

Packaged Length 5.91 inch (15.011 cm)

Packaged Width 5.91 inch (15.011 cm)

Packaged Height 12.60 inch (32.004 cm)

Packaged Weight 4.74 lb (2.150 kg)

Packaged Volume 0.25 ft3 (0.007 m3)

Pieces Per Pallet 52

Other Information

Country of Origin Mexico

NMFC Code 069100-07

HTS Code 8421290040

UPC Code 742330042205
