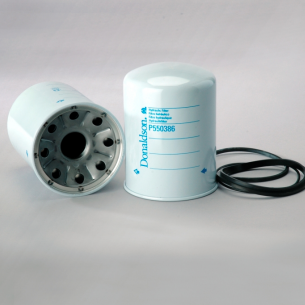

Donaldson Filtration P550386 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 5.00 inch (127 mm)
Thread Size 1 1/2-16 UN
Length 7.19 inch (182.6 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 2 5 micron
Efficiency Beta 1000 24 micron
Flow Direction Standard
Style Spin-On
Series W023, SP50/60, SP80/90S, P100/120
Media Type Cellulose
Price Type F
Packaged Dimensions
Packaged Length 0.45 FT
Packaged Width 0.42 FT
Packaged Height 0.60 FT
Packaged Weight 2.60 lb (1.180 kg)
Packaged Volume 0.11 ft3 (0.003 m3)
Pieces Per Pallet 360
Other Information
Country of Origin Colombia
NMFC Code 121510
HTS Code 8421290040
UPC Code 742330042397
