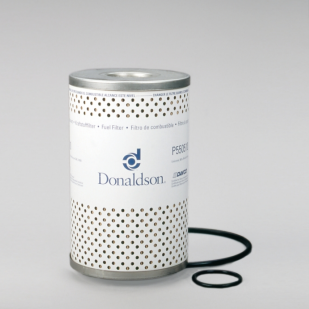

Donaldson Filtration P550510 FUEL FILTER, WATER SEPARATOR CARTRIDGE

Why Choose Donaldson Fuel Filters?
Donaldson fuel filters are designed to help prevent
premature injector and pump wear by delivering cleaner
fuel to your engines.
• Reliable performance – pressure relief valve allows fuel to
rise slowly.
• Compatible with existing electronic filter life indicators.
• Cellulose media – effectively meets application efficiency
and capacity requirements.
Attributes
Overall Length 7.00 inch (177.8 mm)
Outer Diameter 4.21 inch (107 mm)
Inner Diameter 0.66 inch (16.8 mm)
Length 6.73 inch (171 mm)
Gasket OD 2.72 inch (69 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 12 micron
Efficiency Test Std SAE J1488, J1839, J905
Emulsified H2O Efficiency 95 Percent
Flow Direction Standard
Type Water Separator
Style Cartridge
Media Type Cellulose, Silicone
Price Type F
Primary Application DAVCO 102011
Packaged Dimensions
Packaged Length 4.33 inch (10.998 cm)
Packaged Width 4.33 inch (10.998 cm)
Packaged Height 6.69 inch (16.993 cm)
Packaged Weight 0.86 lb (0.388 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 360
Other Information
Country of Origin Mexico
NMFC Code 069100-09
HTS Code 8421230000
UPC Code 742330116807
