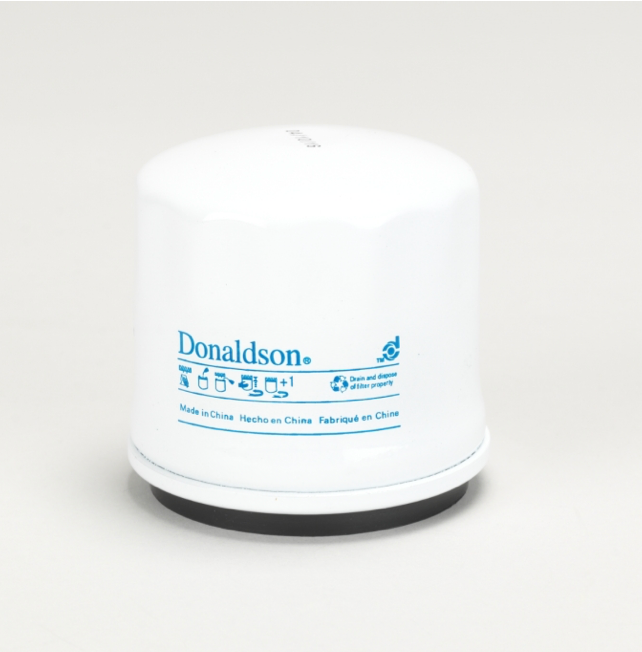

Donaldson Filtration P550606.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 2.89 inch (73.4 mm)

Thread Size 3/4-20 UN

Length 3.00 inch (76.2 mm)

Gasket OD 2.75 inch (69.9 mm)

Gasket ID 2.42 inch (61.5 mm)

Efficiency Beta 2 9 micron

Bypass Valve Yes

Bypass Valve Setting LR 9 psi (0.6 bar)Style Spin-On

Price Type F

Primary Application GMC 29537628

Packaged Dimensions

Packaged Length 0.32 FT

Packaged Width 0.29 FT

Packaged Height 0.33 FT

Packaged Weight 0.90 lb (0.409 kg)

Packaged Volume 0.03 ft3 (0.001 m3)

Pieces Per Pallet 1188

Other Information

Country of Origin China

NMFC Code 069100-05

HTS Code 8421290040

UPC Code 742330143124
