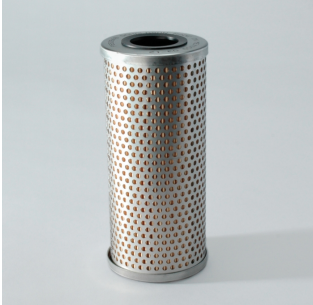

Donaldson Filtration P550648 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.04 inch (102.6 mm)
Inner Diameter 1.78 inch (45.2 mm)
Length 9.02 inch (229 mm)
Gasket OD 2.50 inch (63.5 mm)
Gasket ID 1.78 inch (45.2 mm)
Efficiency Beta 20 23 micron
Efficiency Beta 1000 26 micron
Collapse Burst 100 psi (6.9 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Cellulose
Price Type F
Primary Application KOMATSU 4241611140
Packaged Dimensions
Packaged Length 4.70 inch (11.938 cm)
Packaged Width 4.50 inch (11.430 cm)
Packaged Height 9.70 inch (24.638 cm)
Packaged Weight 1.67 lb (0.756 kg)
Packaged Volume 0.12 ft3 (0.003 m3)
Pieces Per Pallet 288
Other Information
Country of Origin Mexico
NMFC Code 069100-01
HTS Code 8421290040
UPC Code 742330160787
