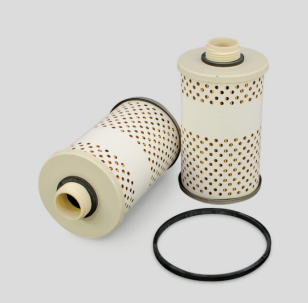

Donaldson Filtration P550674 FUEL FILTER, WATER SEPARATOR CARTRIDGE

Why Choose Donaldson Fuel Filters?
Donaldson fuel filters are designed to help prevent
premature injector and pump wear by delivering cleaner
fuel to your engines.
• Reliable performance – pressure relief valve allows fuel to
rise slowly.
• Compatible with existing electronic filter life indicators.
• Cellulose media – effectively meets application efficiency
and capacity requirements.
Attributes
Outer Diameter 2.96 inch (75.2 mm)
Inner Diameter 0.86 inch (21.8 mm)
Thread Size 1 1/8-12 UN
Length 5.23 inch (132.8 mm)
Efficiency 95% 20 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95 Percent
Collapse Burst 75 psi (5.2 bar)
Type Water Separator
Style Cartridge
Price Type F
Packaged Dimensions
Packaged Length 3.15 inch (8.001 cm)
Packaged Width 3.15 inch (8.001 cm)
Packaged Height 5.51 inch (13.995 cm)
Packaged Weight 0.26 lb (0.118 kg)
Packaged Volume 0.03 ft3 (0.001 m3)
Pieces Per Pallet 396
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330042755
