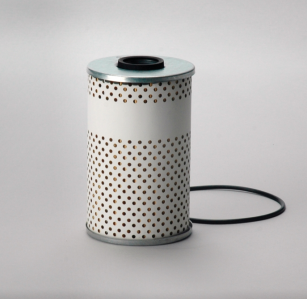

Donaldson Filtration P550694 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.48 inch (88.4 mm)
Inner Diameter 1.14 inch (29 mm)
Length 5.59 inch (142 mm)
Efficiency Beta 2 17 micron
Collapse Burst 35 psi (2.4 bar)
Style Cartridge
Media Type Cellulose
Price Type F
Packaged Dimensions
Packaged Length 3.51 inch (8.915 cm)
Packaged Width 3.51 inch (8.915 cm)
Packaged Height 5.85 inch (14.859 cm)
Packaged Weight 0.44 lb (0.200 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 240
Other Information
Country of Origin Mexico
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330089705
