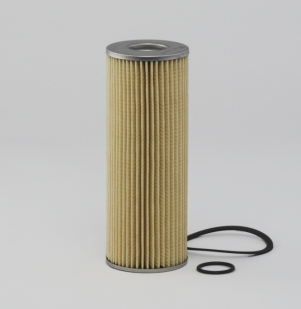

Donaldson Filtration P550696 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.46 inch (87.9 mm)
Inner Diameter 1.41 inch (35.7 mm)
Length 9.25 inch (235 mm)
Efficiency Beta 2 22 micron
Efficiency Beta 20 43 micron
Bypass Valve Yes
Bypass Valve Setting LR 16 psi (1.1 bar)
Bypass Valve Setting HR 19 psi (1.3 bar)
Collapse Burst 75 psi (5.2 bar)
Style Cartridge
Price Type F
Packaged Dimensions
Packaged Length 5.50 inch (13.970 cm)
Packaged Width 16.50 inch (41.910 cm)
Packaged Height 11.20 inch (28.448 cm)
Packaged Weight 0.59 lb (0.268 kg)
Packaged Volume 0.59 ft3 (0.017 m3)
Pieces Per Pallet 130
Other Information
Country of Origin Mexico
NMFC Code 069100-02
HTS Code 8421290040
UPC Code 742330042946
