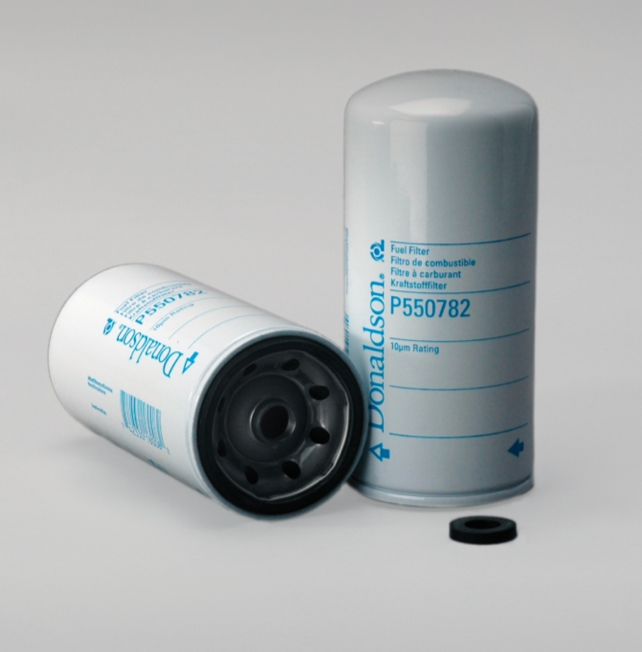

Donaldson Filtration P550782FUEL FILTER, SPIN-ON PRIMARY

Why Choose Donaldson Blue® Filters?

Donaldson Blue® fuel filters with Synteq XP™ media deliver

fuel that's up to 4x cleaner than competitors' best filters.

• Best capture and retention of injector damaging

contaminants.

• Best performance in heavy-duty environments (inferior

filters can “shed” contaminant during engine vibration).

• Helps minimize expensive repairs and unplanned

downtime.

Attributes

Outer Diameter 3.18 inch (80.8 mm)

Thread Size M16 x 1.5

Length 6.93 inch (176 mm)

Gasket OD 2.91 inch (74 mm)

Gasket ID 2.52 inch (64 mm)

Efficiency 99% 10 micron

Efficiency Test Std SAE J1985

Style Spin-On

Media Type CompositePrice Type F

Packaged Dimensions

Packaged Length 3.20 inch (8.128 cm)

Packaged Width 3.20 inch (8.128 cm)

Packaged Height 7.30 inch (18.542 cm)

Packaged Weight 1.02 lb (0.463 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 1008

Other Information

Country of Origin Mexico

NMFC Code 069100-10

HTS Code 8421230000

UPC Code 742330180082
