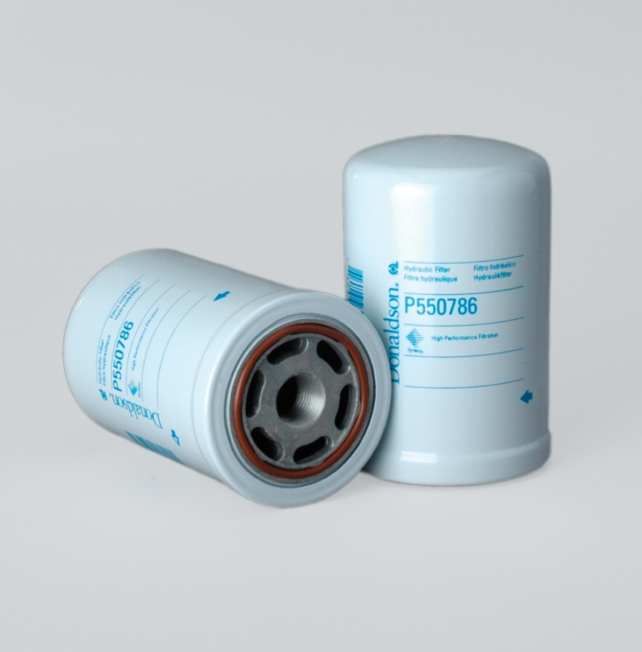

Donaldson Filtration P550786.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 3.71 inch (94.23 mm)

Thread Size 1-12 UN

Length 5.97 inch (151.64 mm)

Gasket OD 2.76 inch (70.15 mm)

Gasket ID 2.48 inch (63.1 mm)

Efficiency Beta 2 7 micron

Efficiency Beta 1000 23 micron

Bypass Valve YesBypass Valve Setting HR 22 psi (1.51 bar)

Flow Direction Standard

Style Spin-On

Media Type Synthetic

Price Type F

Primary Application LINDE 0009830633

Packaged Dimensions

Packaged Length 0.36 FT

Packaged Width 0.36 FT

Packaged Height 0.54 FT

Packaged Weight 2.00 lb (0.908 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 500

Other Information

Country of Origin Mexico

NMFC Code 069100-05

HTS Code 8421290040

UPC Code 742330180211
