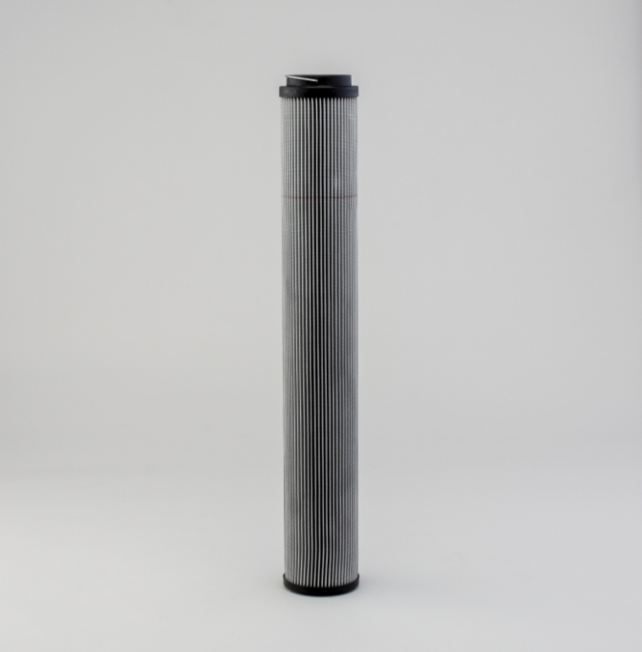

Donaldson Filtration P550826.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.72 inch (94.5 mm)

Inner Diameter 1.90 inch (48.26 mm)

Length 24.61 inch (625.2 mm)

Efficiency Beta 2 4 micron

Efficiency Beta 20 12 micron

Efficiency Beta 1000 5 micron

Bypass Valve Yes

Bypass Valve Setting LR 87 psi (6 bar)

Collapse Burst 435 psi (30 bar)Style Cartridge

Price Type F

Packaged Dimensions

Packaged Length 4.44 inch (11.278 cm)

Packaged Width 4.44 inch (11.278 cm)

Packaged Height 29.64 inch (75.286 cm)

Packaged Weight 4.39 lb (1.993 kg)

Packaged Volume 0.33 ft3 (0.009 m3)

Pieces Per Pallet 120

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290040

UPC Code 742330193020
