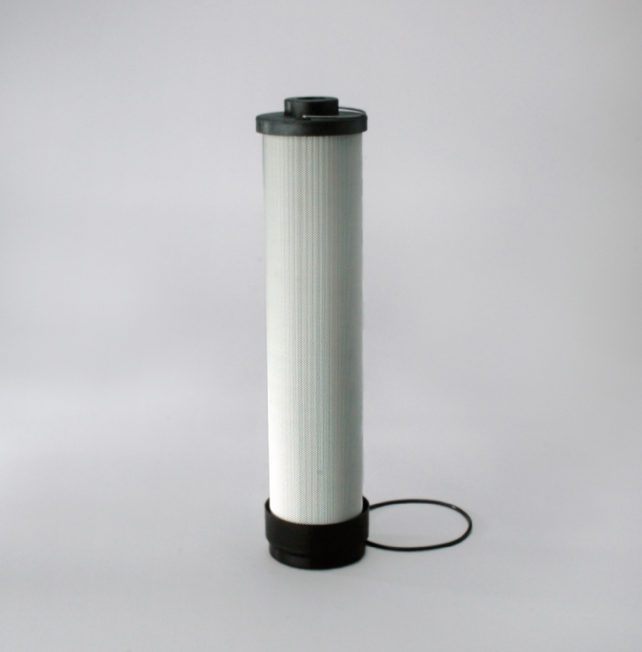

Donaldson Filtration P550827.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.72 inch (94.5 mm)

Inner Diameter 1.58 inch (40.1 mm)

Length 16.14 inch (410 mm)

Efficiency Beta 200 5 micron

Efficiency Beta 1000 7 micron

Bypass Valve Yes

Bypass Valve Setting LR 87 psi (6 bar)

Collapse Burst 435 psi (30 bar)

Style CartridgePrice Type F

Packaged Dimensions

Packaged Length 5.51 inch (13.995 cm)

Packaged Width 5.12 inch (13.005 cm)

Packaged Height 16.93 inch (43.002 cm)

Packaged Weight 2.88 lb (1.308 kg)

Packaged Volume 0.28 ft3 (0.008 m3)

Pieces Per Pallet 108

Other Information

Country of Origin Italy

NMFC Code 069100-12

HTS Code 8421290040

UPC Code 742330193037
