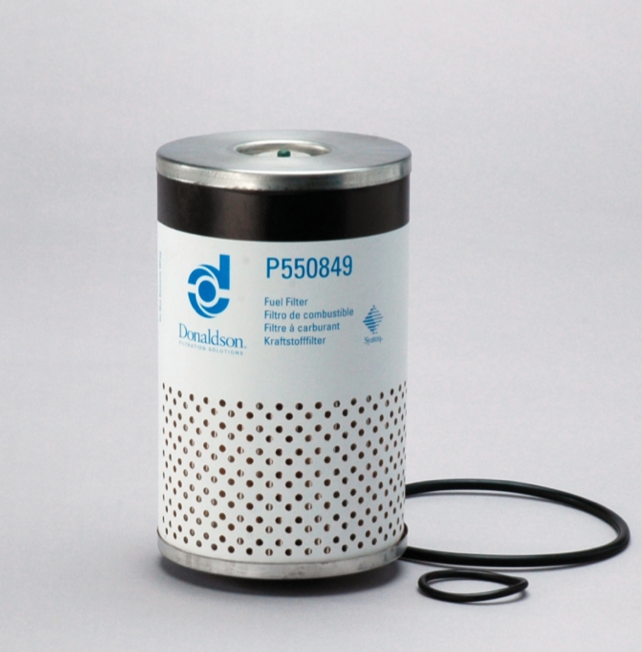

Donaldson Filtration P550849.FUEL FILTER, WATER SEPARATOR CARTRIDGE

Why Choose Donaldson Fuel Filters?

Donaldson fuel filters are designed to help prevent

premature injector and pump wear by delivering cleaner

fuel to your engines.

• Reliable performance – pressure relief valve allows fuel to

rise slowly.

• Compatible with existing electronic filter life indicators.

• Synteq™ media – for fine particulate removal and longer

filter life.

Attributes

Overall Length 7.03 inch (178.6 mm)

Outer Diameter 4.21 inch (107 mm)

Inner Diameter 0.66 inch (16.8 mm)

Length 6.76 inch (171.7 mm)

Efficiency 99% 7 micron

Efficiency Test Std SAE J1985

Emulsified H2O Efficiency 95 Percent

Flow Direction StandardType Water Separator

Style Cartridge

Media Type Cellulose, Meltblown

Price Type F

Packaged Dimensions

Packaged Length 0.38 FT

Packaged Width 0.35 FT

Packaged Height 0.56 FT

Packaged Weight 0.85 lb (0.386 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 360

Other Information

Country of Origin Colombia

NMFC Code 069100-05

HTS Code 8421230000

UPC Code 742330195383

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
