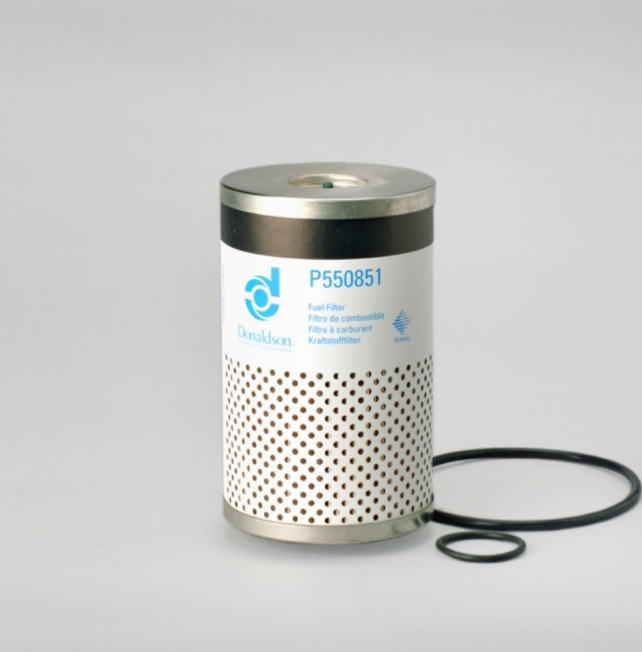

Donaldson Filtration P550851.FUEL FILTER, WATER SEPARATOR CARTRIDGE

Why Choose Donaldson Fuel Filters?

Donaldson fuel filters are designed to help prevent

premature injector and pump wear by delivering cleaner

fuel to your engines.

• Reliable performance – pressure relief valve allows fuel to

rise slowly.

• Compatible with existing electronic filter life indicators.

• Synteq™ XP media – enhanced engine and system

component protection, performing consistently over the life

of the filter.

Attributes

Overall Length 7.03 inch (178.6 mm)

Outer Diameter 4.21 inch (107 mm)

Inner Diameter 0.66 inch (16.8 mm)

Length 6.76 inch (171.6 mm)

Efficiency 99% 25 micron

Efficiency Test Std SAE J1985, J905

Emulsified H2O Efficiency 95 Percent

Flow Direction StandardCollapse Burst 100 psi (6.9 bar)

Type Water Separator

Style Cartridge

Media Type Synthetic

Price Type F

Packaged Dimensions

Packaged Length 0.35 FT

Packaged Width 0.35 FT

Packaged Height 0.59 FT

Packaged Weight 0.79 lb (0.359 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 360

Other Information

Country of Origin Colombia

NMFC Code 069100-09

HTS Code 8421230000

UPC Code 742330195406

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
