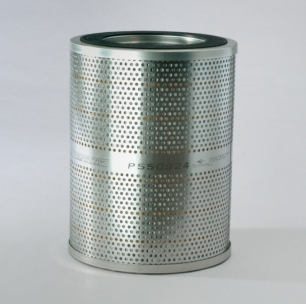

Donaldson Filtration P550924 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 6.84 inch (173.8 mm)
Inner Diameter 4.22 inch (107.3 mm)
Length 8.88 inch (225.6 mm)
Gasket OD 6.00 inch (152.4 mm)
Overall Length 9.00 inch (228.6 mm)
Efficiency Beta 1000 9 micron
Collapse Burst 100 psi (6.9 bar)
Flow Direction Standard
Style Cartridge
Media Type Synteq XP
Price Type F
Primary Application CATERPILLAR 1672009
Packaged Dimensions
Packaged Length 7.30 inch (18.542 cm)
Packaged Width 7.30 inch (18.542 cm)
Packaged Height 9.80 inch (24.892 cm)
Packaged Weight 3.65 lb (1.657 kg)
Packaged Volume 0.30 ft3 (0.008 m3)
Pieces Per Pallet 144
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421290040
UPC Code 742330200520
