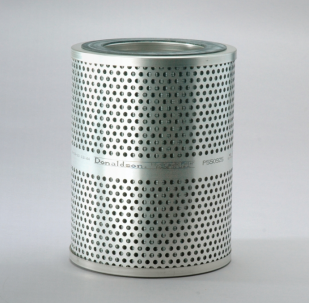

Donaldson Filtration P550925 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 6.84 inch (173.8 mm)
Inner Diameter 4.22 inch (107.3 mm)
Length 8.88 inch (225.6 mm)
Gasket OD 6.00 inch (152.4 mm)
Gasket ID 4.23 inch (107.4 mm)
Overall Length 9.00 inch (228.6 mm)
Efficiency Beta 200 18 micron
Efficiency Beta 1000 23 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Inside-Out
Style Cartridge
Media Type Synthetic
Price Type F
Primary Application CATERPILLAR 2492337
Packaged Dimensions
Packaged Length 7.40 inch (18.796 cm)
Packaged Width 7.30 inch (18.542 cm)
Packaged Height 9.70 inch (24.638 cm)
Packaged Weight 4.41 lb (2.002 kg)
Packaged Volume 0.30 ft3 (0.008 m3)
Pieces Per Pallet 144
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421290040
UPC Code 742330200537
