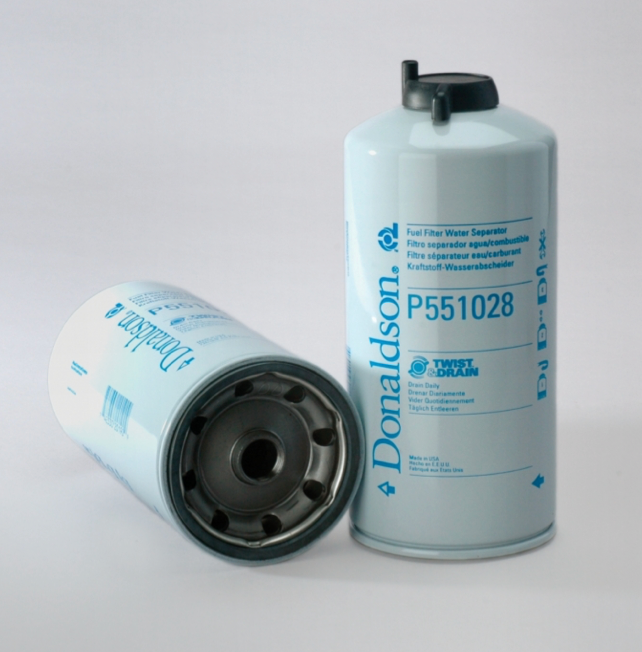

Donaldson Filtration P551028.FUEL FILTER, WATER SEPARATOR SPIN-ON TWIST&DRAIN

Attributes

Outer Diameter 4.22 inch (107.3 mm)

Thread Size M22 x 1.5

Length 9.59 inch (243.7 mm)

Gasket OD 3.90 inch (99 mm)

Gasket ID 3.56 inch (90.3 mm)

Efficiency 99% 17 micron

Efficiency Test Std SAE J1488, J1985

Emulsified H2O Efficiency 95.00 Percent

Collapse Burst 100 psi (6.9 bar)

Type Water Separator

Style Spin-OnBrand Twist&Drain™

Media Type Cellulose

Price Type F

Primary Application MACK 483GB472M

Notes Not for Marine Applications

Packaged Dimensions

Packaged Length 4.25 inch (10.795 cm)

Packaged Width 4.20 inch (10.668 cm)

Packaged Height 9.70 inch (24.638 cm)

Packaged Weight 2.39 lb (1.083 kg)

Packaged Volume 0.10 ft3 (0.003 m3)

Pieces Per Pallet 288

Other Information

Country of Origin United States

NMFC Code 069100-06

HTS Code 8421230000

UPC Code 742330201909
