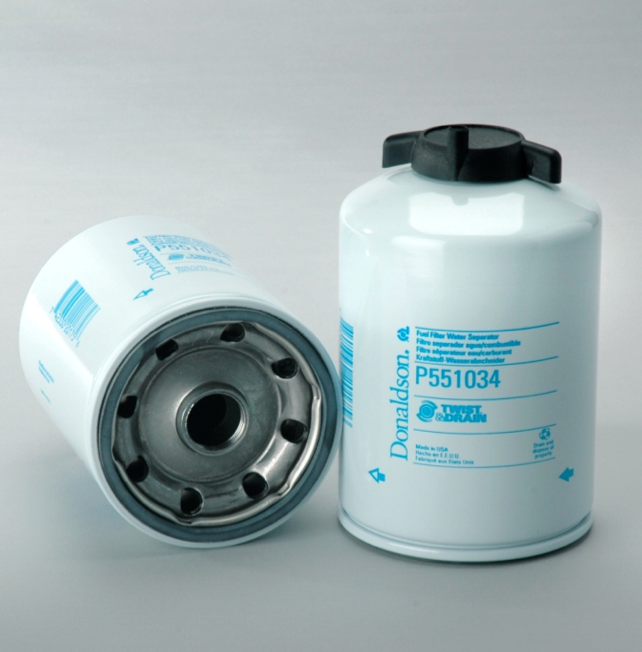

Donaldson Filtration P551034.FUEL FILTER, WATER SEPARATOR SPIN-ON TWIST&DRAIN

Attributes

Outer Diameter 4.22 inch (107.3 mm)

Thread Size 1-14 UN

Length 6.81 inch (173.1 mm)

Gasket OD 3.90 inch (99 mm)

Gasket ID 3.56 inch (90.3 mm)

Efficiency 99% 10 micron

Efficiency Test Std SAE J1488, J1985

Emulsified H2O Efficiency 95 Percent

Collapse Burst 100 psi (6.9 bar)

Type Water Separator

Style Spin-OnBrand Twist&Drain™

Media Type Cellulose

Price Type F

Primary Application RACOR S3226T

Notes Not for Marine Applications

Packaged Dimensions

Packaged Length 4.20 inch (10.668 cm)

Packaged Width 4.20 inch (10.668 cm)

Packaged Height 7.00 inch (17.780 cm)

Packaged Weight 1.78 lb (0.808 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 360

Other Information

Country of Origin Mexico

NMFC Code 069100-10

HTS Code 8421230000

UPC Code 742330201756
