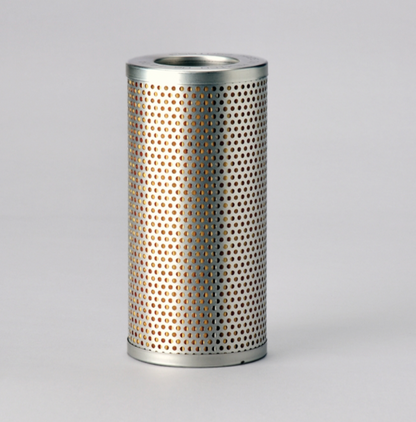

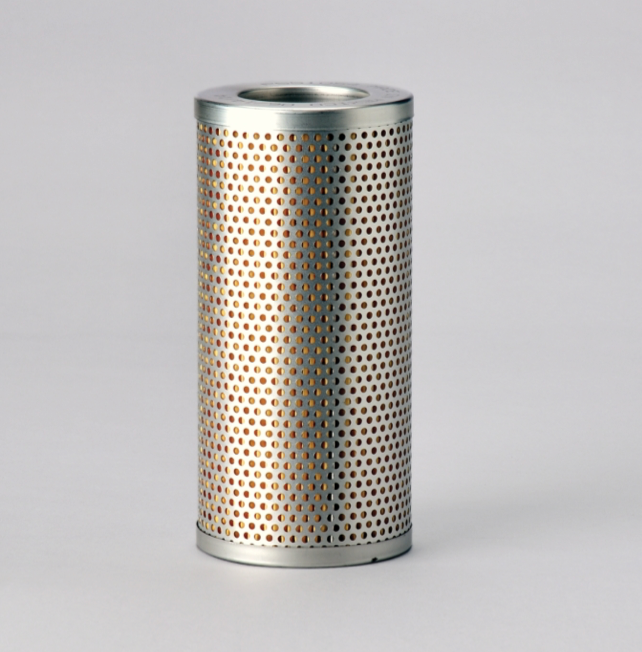

Donaldson Filtration P551054.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.94 inch (100.1 mm)

Inner Diameter 2.34 inch (59.44 mm)

Length 8.27 inch (210.1 mm)

Efficiency Beta 2 14 micron

Efficiency Beta 20 25 micron

Flow Direction Standard

Style Cartridge

Media Type Cellulose

Price Type FPrimary Application KOMATSU 0706301054

Packaged Dimensions

Packaged Length 4.00 inch (10.160 cm)

Packaged Width 3.80 inch (9.652 cm)

Packaged Height 8.30 inch (21.082 cm)

Packaged Weight 1.02 lb (0.463 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 360

Other Information

Country of Origin Mexico

NMFC Code 069100-13

HTS Code 8421290040

UPC Code 742330043615
