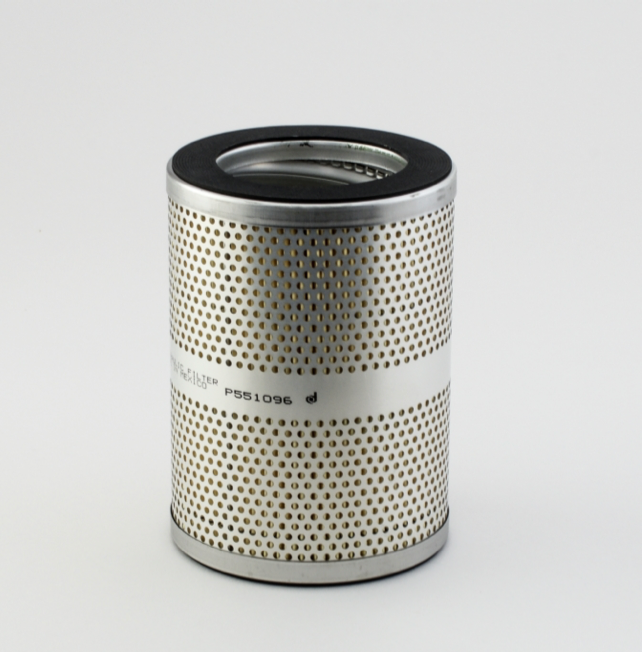

Donaldson Filtration P551096.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 5.07 inch (128.8 mm)

Inner Diameter 3.35 inch (85.1 mm)

Length 6.88 inch (174.8 mm)

Gasket OD 4.87 inch (123.8 mm)

Gasket ID 3.35 inch (85 mm)

Efficiency Beta 2 9 micron

Collapse Burst 100 psi (6.89 bar)

Flow Direction Inside-Out

Style CartridgeMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 6.30 inch (16.002 cm)

Packaged Width 6.30 inch (16.002 cm)

Packaged Height 8.10 inch (20.574 cm)

Packaged Weight 1.58 lb (0.717 kg)

Packaged Volume 0.19 ft3 (0.005 m3)

Pieces Per Pallet 245

Other Information

Country of Origin Mexico

NMFC Code 069100-04

HTS Code 8421290040

UPC Code 742330983928
