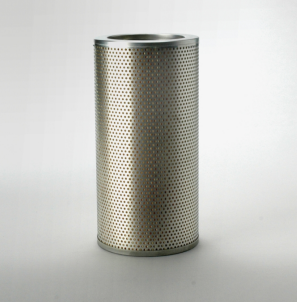

Donaldson Filtration P551142 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 5.90 inch (149.86 mm)
Inner Diameter 4.34 inch (110.24 mm)
Length 11.81 inch (299.97 mm)
Efficiency Beta 2 14 micron
Efficiency Beta 20 25 micron
Collapse Burst 149 psi (10.3 bar)
Flow Direction Standard
Style Cartridge
Media Type Cellulose
Price Type F
Primary Application KOMATSU 0706301142
Packaged Dimensions
Packaged Length 6.30 inch (16.002 cm)
Packaged Width 6.40 inch (16.256 cm)
Packaged Height 12.50 inch (31.750 cm)
Packaged Weight 2.92 lb (1.323 kg)
Packaged Volume 0.29 ft3 (0.008 m3)
Pieces Per Pallet 108
Other Information
Country of Origin Mexico
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330043684
